GGT Range

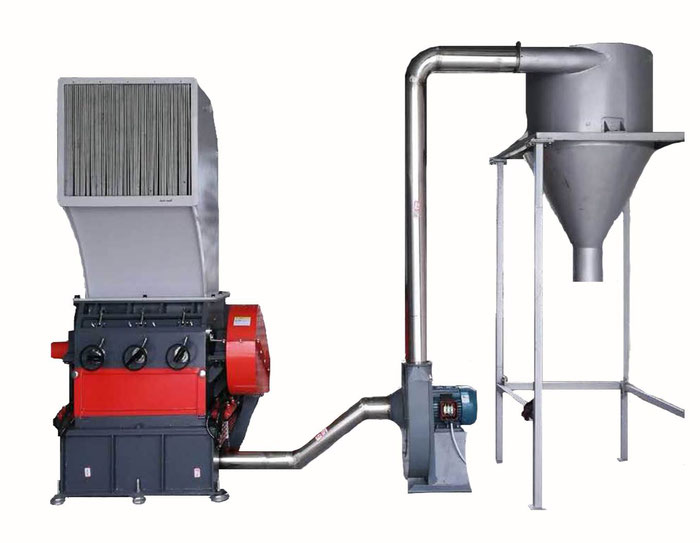

Heavy-Duty Granulator

V Blades Granulator Machines GGT600-45 / GGT800-45 / GGT800-60 / GGT1000-60 / GGT1200-60

Main Features

Reliable performance, high capacity output.

Able to granulate & recycle all kinds of plastics materials of different textures and shapes. Well con-structured with precisely engineered mechanical parts to insure precision. Strong structured, easy to operate, low electricity consumption & durable. Full safety devices installed, to insure safe operation. V-Blade design external bearing housings, housing installed outside of main body, effectively preventing the granulated material inter into the bearing box, improve bearing life. Hydraulic motor opening and closing device 1.5kw motor.

Machine Specifications

Model



Revolving Blades (pcs)



Fixed Blades
(pcs)



Screen

Dia (mm)



Valid

Mouth (mm)

Capacity

Power

(kw)



Outline

Dimension

(mm)



Machine

Weight (kg)

Blower

Motor

Pipe

Diameter



Silo

Volume

GGT600*45 3 2 12 600*530 400*600 30 2000*1550*2500 2600 7.5 127 200
GGT800*45 6 4 12 800*600 600*900 37 2000*1750*3150 3000 7.5 127 200
GGT800*60 10 4 12 1000*700 900*1200 45 2100*1750*3500 3500 7.5 127 200
GGT1000*60 10 4 12 1200*705 1200*1600 55 2300*1950*3350 4500 7.5 127 200
GGT1200*60 10 4 12 1400*705 1600*2000 75 2300*2150*3350 5500 7.5 127 200


Plastic Materials These Machines Can Granulate
